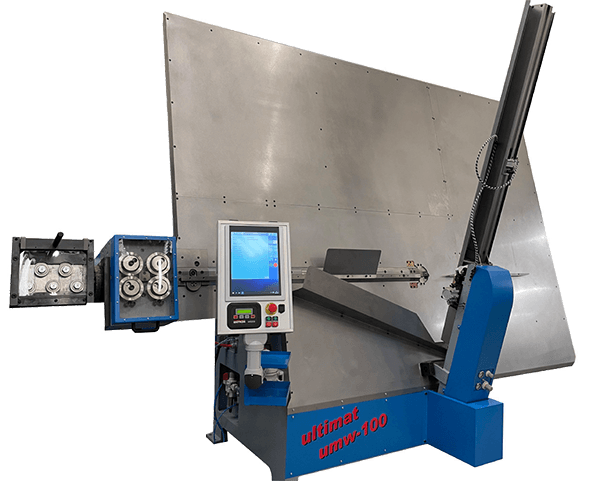

2D Wire Bending with Automatic Butt Welding
A range of 2 axis PC Controlled Wire Forming Machines, that are available with or without welding, designed for the manufacture of prototypes to low/high volume production runs. A versatile design that requires no special tooling to achieve high quality accurate parts.
Models available from 2.00mm – 13.00mm
Key Features:
- Fast cycle times for frames direct from coil
- Software allows for “generated bending” of large radii
- High quality cut in conjunction with pulse welding, for burr-free welds and reducing secondary operations
- Fast changeover from one wire diameter to another
- Suited for prototypes to low or high volume production runs
- Individual parts can be produced consecutively or as part of a kit
- Parts programmed in ‘mm’ or ‘inches’
- Welding parameters programed and saved with the part program
- Optional Pick & Place for orderly ejection of the frames
- Multilingual dialog and programming on a on a 15’’ industrial touch screen
- Additional functions and availability of inputs/outputs for the control of external units
- Web connection and remote assistance available
- Repeatability ±0.05°on bends and ± 0.1mm of feed length
- Real Time Production Speeds—Parts/Min. Parts/Hour
- Designed and manufactured in the U.K
- 2 year parts limited warranty
